SOLAR TUBULAR DAYLIGHTING

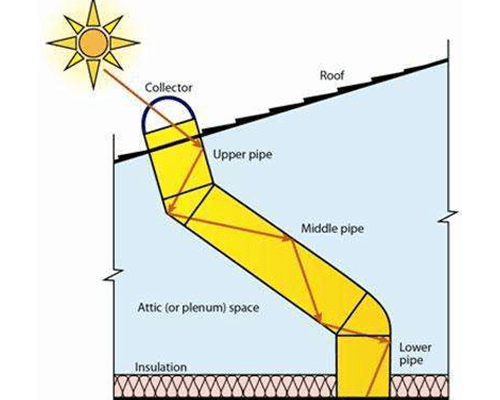

WHY TUBULAR LIGHT?

  • Provides natural sunlight into building spaces without heat / glare
  • Can be bent and made to travel within deeper building interiors
  • Can travel to far away places (upto 12 meters) within the building
  • Can be fixed on roof top (metal or RCC) or side wall

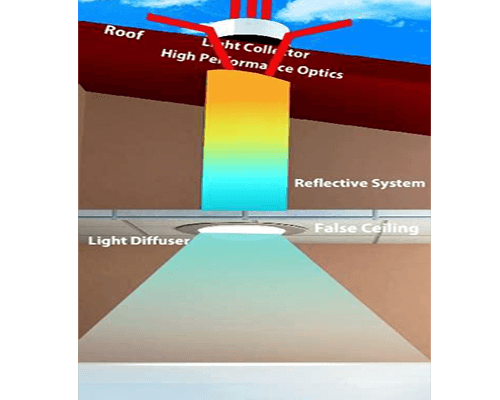

SYSTEM COMPONENTS

Light Collector:

Mounted on Roof Top or Outer Wall and responsible for collecting sunlight and rejection of heat

Light Transfer:

Fixed between collector & diffuser and responsible for transporting light from collector until diffuser

Light Diffuser:

Controls and distributes light into the building interiors providing wider coverage

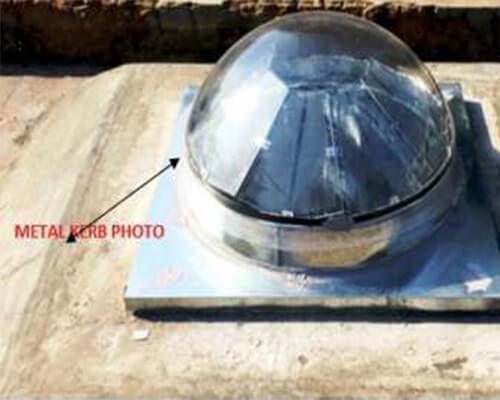

LIGHT COLLECTOR

  • Blocks UV & IR Radiation with UV / IR resistant Polycarbonate dome
  • Able to collect low angle sunlight (Morning & Evening) with a 180° dome
  • Mid noon Radiation is partially rejected with Light Deflection Plates placed inside Collector dome
  • Impact resistant & clearly visible on rooftop
  • Universal Galvalume metal flashing plate irrespective of metal roof profile

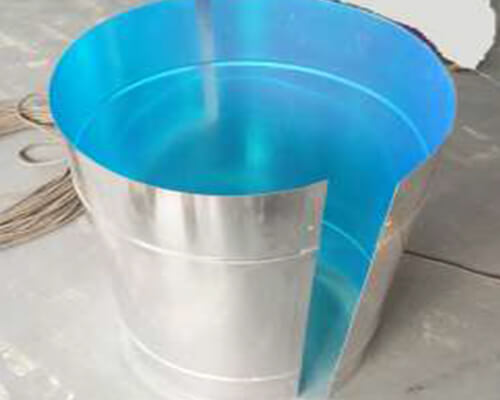

LIGHT TRANSFER

  • Aluminum Reflective system
  • Inner mirror surface provides multiple reflections of incoming light making light to travel down
  • Static Air Column blocks heat transfer vide Conduction & Convection
  • No change of light Color
  • Minimal loss of transmission by aging
  • Durable & Long life (min 20 years)
  • Easy to assemble and install

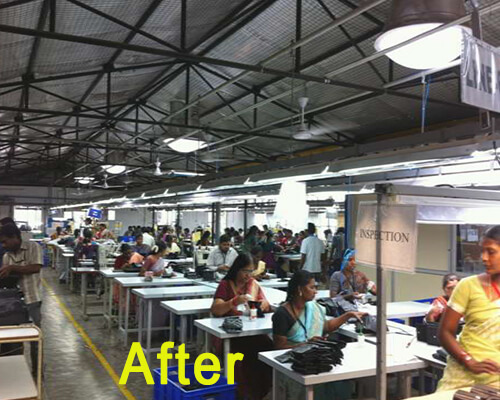

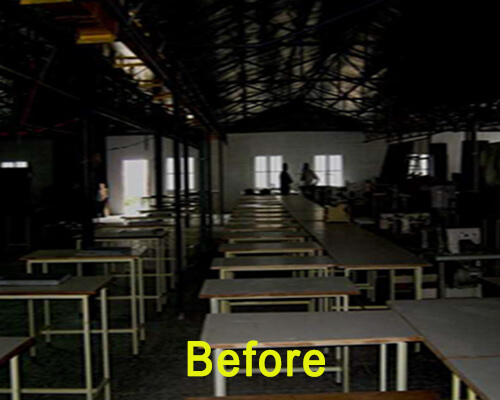

SUNLIGHT WITHOUT HEAT
